How to Assemble a Brake Caliper: A Complete Step-by-Step Guide

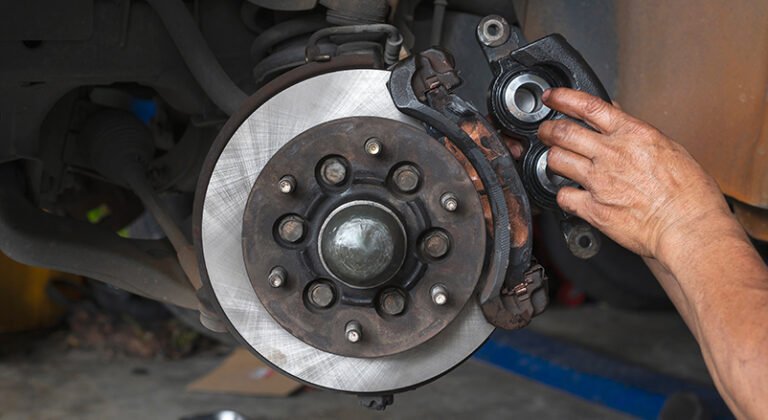

Learning how to assemble a brake caliper starts with understanding how the braking system works. A caliper holds the brake pads and pushes them against the rotor to slow your vehicle. A small mistake during assembly can affect braking safety.
From my experience working with vehicle brake systems, careful cleaning and proper seal placement make the biggest difference. Whether you repair a daily driver in the United States or maintain a project car, a careful process helps create a dependable brake assembly.
Understanding Brake Caliper Parts Before Assembly
Before learning how to assemble a brake caliper, identify every part. A typical disc brake caliper includes the housing, piston, square-cut seal, dust boot, slide pins, brackets, and brake pads.
Each part has a purpose. The piston creates pressure, the seal keeps brake fluid inside, and the dust boot protects moving surfaces from dirt and moisture.
- ā¦ Caliper body
The main metal housing that supports the piston and brake pads.
- ā¦ Piston seal
A rubber seal that prevents brake fluid leaks and allows smooth piston movement.
- ā¦ Dust boot
A protective cover that keeps debris away from the piston surface.
Why clean parts matter
Brake parts must be clean before assembly. Rust, dirt, or old fluid can damage seals and cause the piston to stick.
Use proper brake cleaner and inspect every surface before installing new components.
- ā¦ Inspection step
Check for cracks, deep rust, or damaged piston surfaces before rebuilding.
Tools and Supplies Needed to Assemble a Brake Caliper
The right tools make how to assemble a brake caliper easier and safer. Most repairs need basic hand tools plus brake-specific supplies.
Avoid using damaged tools because they can harm sealing surfaces or create unsafe repairs.
- ā¦ Basic tools
Use sockets, wrenches, screwdrivers, a torque wrench, and a soft brush.
- ā¦ Cleaning supplies
Use brake cleaner, clean towels, and fresh brake fluid approved for your vehicle.
- ā¦ Replacement parts
Use a quality rebuild kit with matching seals and boots.
Step-by-Step Guide on How to Assemble a Brake Caliper
The process of how to assemble a brake caliper begins after complete cleaning and inspection. Work in a clean area because brake seals are sensitive to contamination.
Follow the vehicle service manual for exact specifications because designs vary between makes and models.
- ā¦ Step 1: Install the piston seal
Place the new square-cut seal into the caliper groove without twisting or stretching it.
- ā¦ Step 2: Lubricate the piston
Apply clean brake fluid to the piston and seal before installation.
- ā¦ Step 3: Install the piston and dust boot
Press the piston into place evenly and secure the protective boot.
- ā¦ Step 4: Install guide pins and pads
Clean and lubricate slide pins, then install the brake pads and hardware.
Common mistakes during caliper assembly
Many brake problems come from rushed assembly. A twisted seal, damaged boot, or dirty piston can lead to leaks or uneven braking.
- ā¦ Avoid forcing parts
Brake components should fit smoothly when installed correctly.
Testing and Bleeding After Brake Caliper Assembly
After you complete how to assemble a brake caliper, the brake system must be checked. Air inside the brake lines can create a soft pedal and reduce braking control.
Bleed the brake system according to your vehicle instructions. Check for leaks before taking a test drive.
- ā¦ Check for leaks
Inspect around the caliper, hose connection, and bleeder screw.
- ā¦ Test pedal feel
A firm brake pedal usually shows that the system is properly filled and bled.
Safety Tips for Brake Caliper Repair
Brake repairs affect vehicle safety, so take extra care during assembly. Use proper lifting equipment and support the vehicle with approved jack stands.
If a caliper has severe corrosion or damage, replacement may be safer than rebuilding.
- ā¦ Wear protection
Use gloves and eye protection when working with brake cleaner and brake fluid.
- ā¦ Follow torque settings
Tighten bolts to manufacturer specifications to prevent failures.
Benefits and Limitations of Rebuilding a Brake Caliper
Knowing how to assemble a brake caliper can save money and help restore older brake components. Many vehicle owners rebuild calipers when the main housing remains in good condition.
However, not every caliper should be rebuilt. Damage, heavy corrosion, or worn mounting surfaces may require a replacement unit.
- ā¦ Possible benefit
A rebuild can cost less than replacing the entire caliper assembly.
- ā¦ Possible limitation
A rebuilt caliper may not solve problems caused by damaged metal parts.
